GENIE IP KEY PANEL

Genie Rack Panel | GRP8-12V

Product highlights

  • 1U type Key Panel
  • 4 Channels for 4-Wire
  • 16 Talk channels with 8 Talk keys, 8 Volume switches
  • GPIO (Relay, Opto, AUX D), PoE IN x 1, LAN x 2
  • Built-in loudspeaker and an either Gooseneck mic. or Headset
  • On a Key, 20 Key Panels and Genie group conference channels can be allocated
  • WAN Link, Line Router and IFB communications in configuration
  • PoE IN and 12V DC dual power

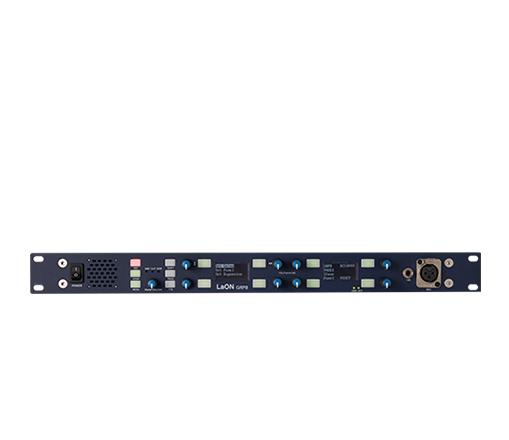

GRP8-12V Front

[GRP8-12V Front]

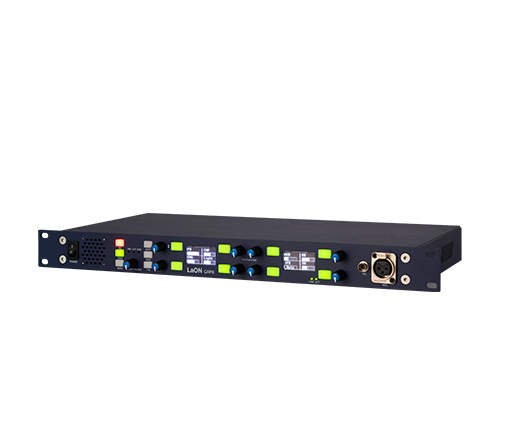

GRP8-12V Side

[GRP8-12V Side]

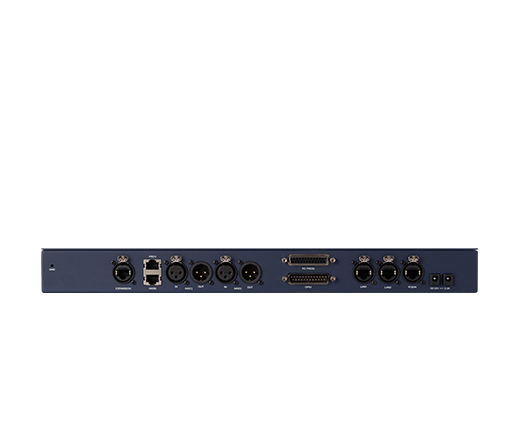

GRP8-12V Rear

[GRP8-12V Rear]

리소스 다운받기
Specification sheet
Loudspeaker 3 watts
Headset output 500mW into 32 Ohm
Front Panel Display Two OLED screens
Front Panel Button 8 Talk key, LED indicated Buttons and Rotary controls
Headset Dynamic or Electret, 6-pin mini-DIN male, Receptacle
Gooseneck Microphone Dynamic or Electret, XLR-3F
Line A and Line B (4-Wire) Two RJ-45, 600Ω balanced, level adjustable
Line C and Line D (4-Wire) Input: XLR-3F, Output: XLR-3M, 600Ω balanced, level adjustable
GPIO, 12VDC, AUX(D) DB25M, 2 Relay outputs and 2 Opto-isolated inputs, 12VDC, 600Ω unbalanced, level adjustable
PC PROG 25-pin D-type female, Updating the Key Panel firmware
PoE Input RJ-45 Connector, 100Mbps Standard PoE specification
LAN Two RJ-45 Connectors, 100Mbps Standard LAN specification
Power Supply Consumption: 9 watts
Two 11.4-12.6VDC inputs, PoE input
The external PSU provides 12VDC 3.335A and at its input takes 100-240VAC, 47-63Hz
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 16.83W x 8.03D x 1.73H inch (42.75W x 20.4D x 4.4H cm)
Weight 7.27 lb (3300g)

Genie Rack Panel | GRP16

Product highlights

  • 1U type Key Panel
  • 3 TFT color display
  • 4 Channels for 4-Wire
  • 32 Talk channels with 16 Talk keys, 16 Call buttons
  • GPIO (Relay, Opto, AUX D), PoE IN x 1, LAN x 2
  • Built-in loudspeaker and an either Gooseneck mic. or Headset
  • On a Key, 20 Key Panels and Genie group conference channels can be allocated.
  • WAN Link, Line Router and IFB communications in configuration
  • PoE IN and 12V DC dual power

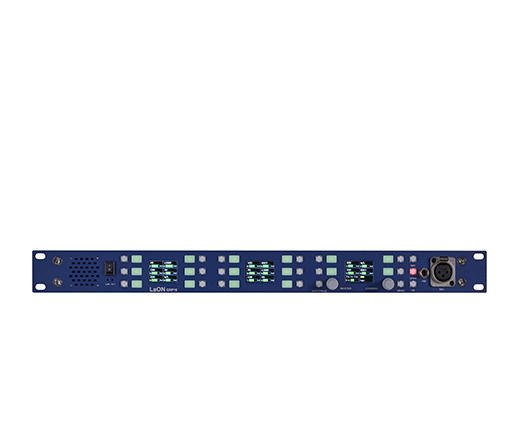

GRP16 Front

[GRP16 Front]

GRP16 Rear

[GRP16 Rear]

리소스 다운받기
Specification sheet
Loudspeaker 3 watts
Headset output 500mW into 32 Ohm
Front Panel Display Three TFT color screens
Front Panel Button 16 Talk key, LED indicated Buttons and Rotary controls
Headset Dynamic or Electret, 6-pin mini-DIN male, Receptacle
Gooseneck Microphone Dynamic or Electret, XLR-3F
Line A and Line B (4-Wire) Two RJ-45, 600Ω balanced, level adjustable
Line C and Line D (4-Wire) Input: XLR-3F, Output: XLR-3M, 600Ω balanced, level adjustable
GPIO, 12VDC, AUX(D) DB25M, 2 Relay outputs and 2 Opto-isolated inputs, 12VDC, 600Ω unbalanced, level adjustable
PC PROG 25-pin D-type female, Updating the Key Panel firmware
PoE Input RJ-45 Connector, 100Mbps Standard PoE specification
LAN Two RJ-45 Connectors, 100Mbps Standard LAN specification
Power Supply Consumption: 10 watts
Two 11.4-12.6VDC inputs, PoE input
The external PSU provides 12VDC 3.335A and at its input takes 100-240VAC, 47-63Hz
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 16.83W x 8.03D x 1.73H inch (42.75W x 20.4D x 4.4H cm)
Weight 7.27 lb (3300g)

Genie Rack Panel | GRP32

Product highlights

  • 2U type Key Panel
  • 6 TFT color display
  • 4 Channels for 4-Wire
  • 32 Talk channels for 32 Talk keys, 32 Call buttons
  • GPIO (Relay, Opto, AUX D), PoE IN x 1, LAN x 2
  • Built-in loudspeaker and an either Gooseneck mic. or Headset
  • On a Key, 20 Key Panels and Genie group conference channels can be allocated
  • WAN Link, Line Router and IFB communications in configuration
  • PoE IN and 12V DC dual power

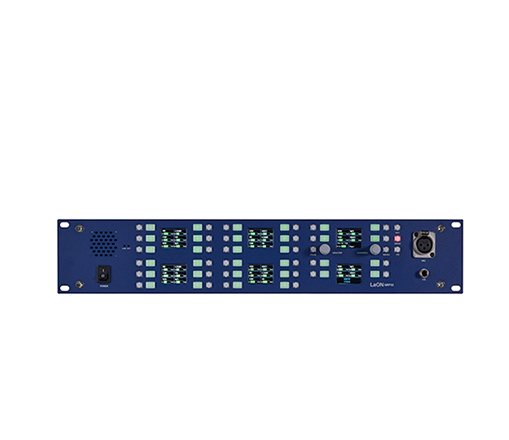

GRP32 Front

[GRP32 Front]

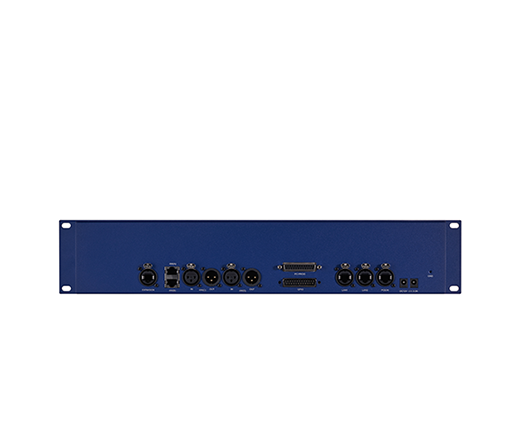

GRP32 Rear

[GRP32 Rear]

리소스 다운받기
Specification sheet
Loudspeaker 3 watts
Headset output 500mW into 32 Ohm
Front Panel Display Six TFT color screens
Front Panel Button 32 Talk key, LED indicated Buttons and Rotary controls
Headset Dynamic or Electret, 6-pin mini-DIN male, Receptacle
Gooseneck Microphone Dynamic or Electret, XLR-3F
Line A and Line B (4-Wire) Two RJ-45, 600Ω balanced, level adjustable
Line C and Line D (4-Wire) Input: XLR-3F, Output: XLR-3M, 600Ω balanced, level adjustable
GPIO, 12VDC, AUX(D) DB25M, 2 Relay outputs and 2 Opto-isolated inputs, 12VDC, 600Ω unbalanced, level adjustable
PC PROG 25-pin D-type female, Updating the Key Panel firmware
PoE Input RJ-45 Connector, 100Mbps Standard PoE specification
LAN Two RJ-45 Connectors, 100Mbps Standard LAN specification
Power Supply Consumption: 12 watts
Two 11.4-12.6VDC inputs, PoE input
The external PSU provides 12VDC 3.335A and at its input takes 100-240VAC, 47-63Hz
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 16.83W x 8.03D x 3.47H inch (42.75W x 20.4D x 8.8H cm)
Weight 9.47 lb (4300g)
