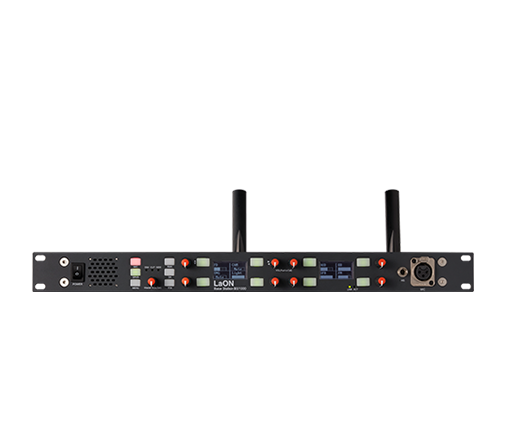

[BS1000 Front]

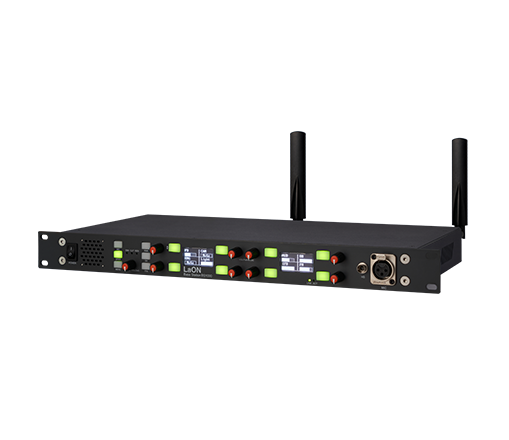

[BS1000 Side]

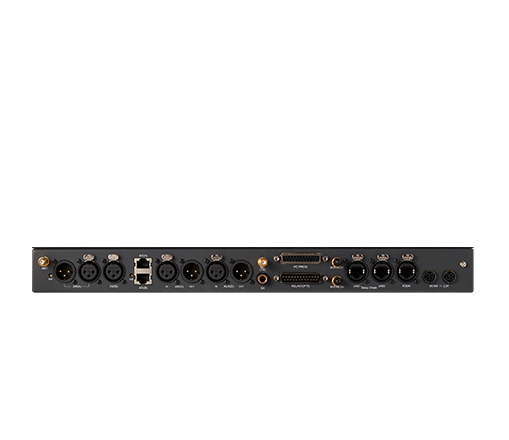

[BS1000 Rear]
| RF Frequency | Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions |
|---|---|
| Antenna | 2 x external 1/2 -wave dipole, SMA female |
| RF Modulation | QPSK |
| Beltpacks per Base Station | 128 Wireless Beltpacks or Receivers can be paired with a Base Station. 10 Talk and 128 Listen paths are supported at the same time. |
| Genie group channels | Five(5) conference channels |
| Audio Bandwidth | 200 Hz to 7.2 kHz |
| Loudspeaker | 3watts |
| Headset output | 500mW, 32 Ohm |
| Latency | One-way system latency less than 23ms direct |
| Security | 256 bits key AES level 3 Encryption |
| Front Panel Display | Two OLED |
| Front Panel Button | 8 Talk key, LED indicated Buttons and Rotary encoders |
| Headset | Dynamic or Electret, 6-pin Mini-Din male, Receptacle |
| Gooseneck | Dynamic or Electret, XLR-3F |
| Line A (2-Wire) | XLR-3F with XLR-3M loop through |
| Line B (2-Wire) | XLR-3F |
| Line A and Line B (4-Wire) | Two RJ-45, 600Ω balanced, level adjustable |
| Line C (4-Wire) | Input: XLR-3F Output: XLR-3M, 600Ω balanced, level adjustable |
| Line D (4-Wire) | Input: XLR-3F Output: XLR-3M, 600Ω balanced, level adjustable |
| Stage announce output | Phone Jack (6.3Φ), Transformer isolated, Line-level output |
| Multi-Sync ports | SMA Female. Up to 5 Base Stations may be connected for Ethernet synchronization |
| PC PROG | 25-pin D-type female, Upgrading the firmware |
| Relay/Opto/AUX(D) | 3 x Relay outputs, 2 x Opto inputs, AUX I/O (Unbalanced) |
| PoE Input | RJ-45 Connector, 100Mbps Standard PoE specification |
| Daisy-chain PoE Line1, Line2 | Two RJ-45 Connectors, 100Mbps Standard PoE specification |
| Power Input | Consumption: 17 watts Two 48-56VDC inputs, PoE input The external PSU provides 48VDC 2.5A, 100-240VAC, 47-63Hz |
| Operating Temperature | 0°C to 50°C (32° F to 122° F) |
| Dimensions | 16.83W x 8.03D x 1.73H inch (42.75W x 20.4D x 4.4H cm) |
| Weight | 7.72 lb (3500g) |

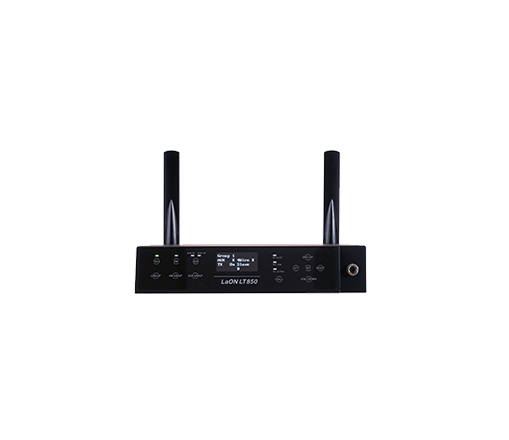

[BS850 Front]

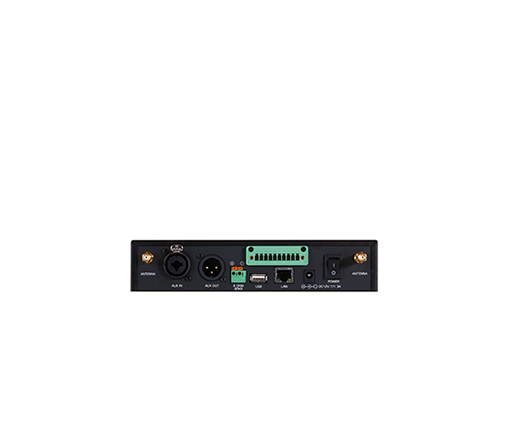

[BS850 Rear]
| RF Frequency | Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions |
|---|---|
| Antenna | Two external 1/2 -wave dipole, SMA female |
| RF Modulation | QPSK |
| Beltpacks per Base Station | 128 Beltpacks can be paired with a Base Station. It supports 10 Talk and 128 Listen paths at the same time. |
| Genie group channels | Five(5) conference channels |
| Audio Bandwidth | 200 Hz to 7.2 kHz |
| Headset output | 250mW into 32 Ohm |
| Headset | Dynamic or Electret, 6-pin mini-DIN male, Receptacle |
| Latency | One-way system latency less than 23ms direct |
| Communication Security | 256 bits key AES level 3 Encryption |
| Auxiliary Input | XLR-3F/1/4” (6.35mm) combo jack, 600Ω balanced, level adjustable |
| Auxiliary output | XLR-3M, 600Ω balanced, level adjustable |
| 8Ω Speaker Output | 350mW into 8Ω |
| 4-Wire I/O | 10-Pin Spring Clamp connector, 600Ω balanced, level adjustable |
| Multi-Sync ports | 10-Pin Spring Clamp connector. Up to 3 Base Station can be connected |
| LAN Connector | RJ-45 |
| Front Panel Display | OLED |
| Front Panel Button | Touch buttons |
| Power Supply | Consumption: 9 watts The external PSU provides 12VDC 3.3A and at its input takes 100-240VAC, 47-63Hz |
| Operating Temperature | 0°C to 50°C (32° F to 122° F) |
| Dimensions | 8.26W x 6.37D x 1.73H inch (21W x 16.2D x 4.4H cm) without connector and foot. |
| Weight | 2.41 lb (1094g) |
