Boundaryless Intercom communications

LaON, the INTERCOMmunication-maker

ACCESSORIES

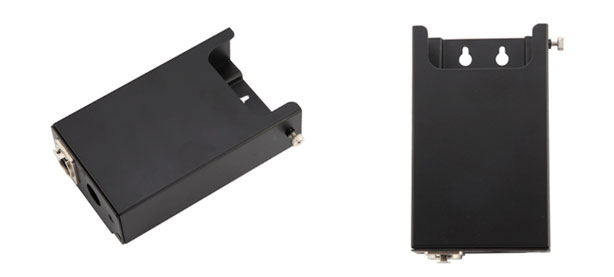

RA100/RBS holder

RA/RBS holder
[RA100/RBS holder]
  • RA100/RBS installation kit for camera tripod or wall
  • Neutrik connector for LAN RJ-45 Connector (x 1)
  • Bolt, 1/4"-20UNC x 8mm (x 1EA) required to fix holder and wall bracket
  • Bolt, T4 x 10mm (x 4EA) required to fix the bracket on the wall
  • An appropriate convert/interface bolt required to install on the microphone or light stands
  • Dimensions: 150mm x 100mm X 47.9mm
  • Weight: 479.5g
  • Additional L shape bracket BRK1000 can be used for more flexible installation

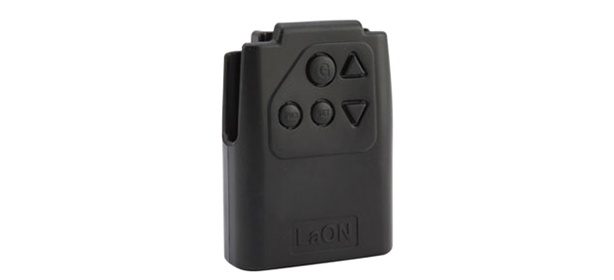

Belt Pack pouch

BP Pouch ‘BPCH100’
[BP Pouch ‘BPCH100’]
  • Extra robust silicon pouch for the Belt Pack protection
  • Dimensions: 80mm x 110mm X 30mm

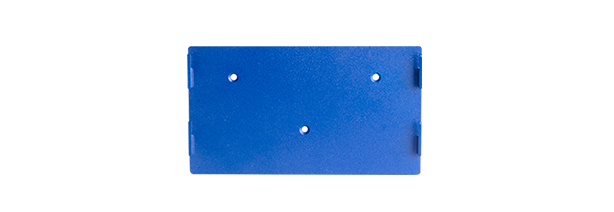

Wall Bracket for GDP4

BRK400 Wall Bracket
[BRK400 Wall Bracket]
  • Wall attached bracket for GDP4 4 Keys Desk Key Panel
  • Optional

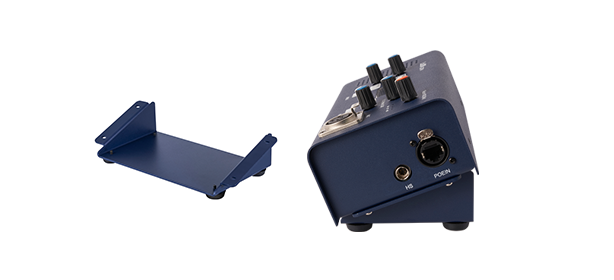

Desk Bracket for GDP4

BRK450 Desk Bracket GDP4 with BRK450 assembled
[BRK450 Desk Bracket] [GDP4 with BRK450 assembled]
  • Desk bracket for GDP4 4 Keys Desk Key Panel
  • Optional

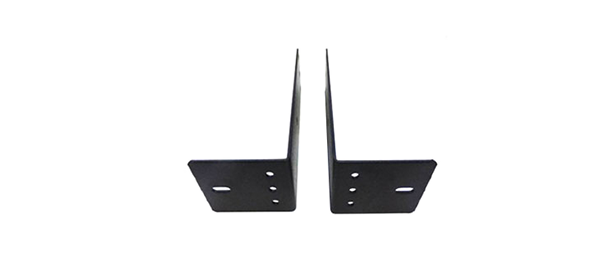

Wing bracket kit

Wing bracket ‘BRK550’
[Wing bracket ‘BRK550’]
  • Wing bracket helps to install the Base Station on a 1RU rack.
  • There are halls on both side of the brackets to fix the antennas facing front or back.
  • 1 set of 37mm antenna extension cable can be used together with this kit.

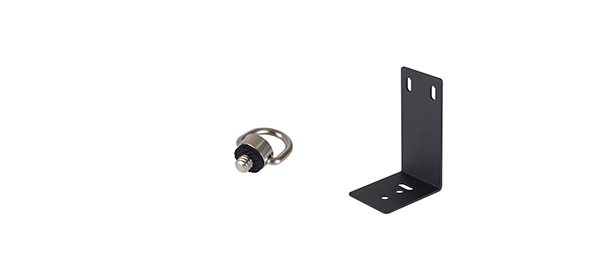

L Shape Bracket BRK1000

BRK1000 Bracket with a Screw
[BRK1000 Bracket with a Screw]
  • BRK1000 can be used additionally with RA100/RBS holder RHD1000 for more flexible installation on the wall or ceiling
  • RA100DW Remote Antenna comes with a BRK1000
  • Optional
