Boundaryless Intercom communications

LaON, the INTERCOMmunication-maker

GENIE IP KEY PANEL

Genie IP Beltpack | IBP10

Product highlights

  • 8 Talk channels with 4 Keys
  • 1 x PoE IN and 1 x PoE OUT
  • 6pin connector headset or TRRS ear set
  • Call tone and vibration

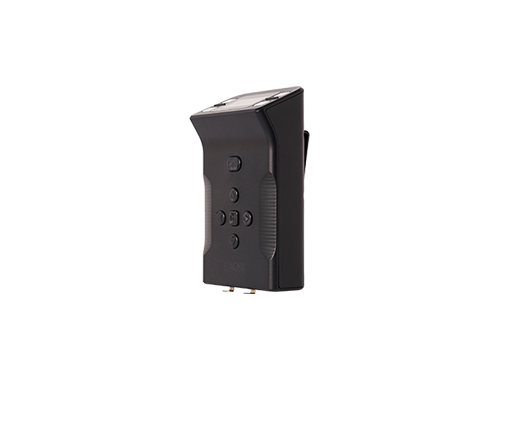

IBP10 Side

[IBP10 Side]

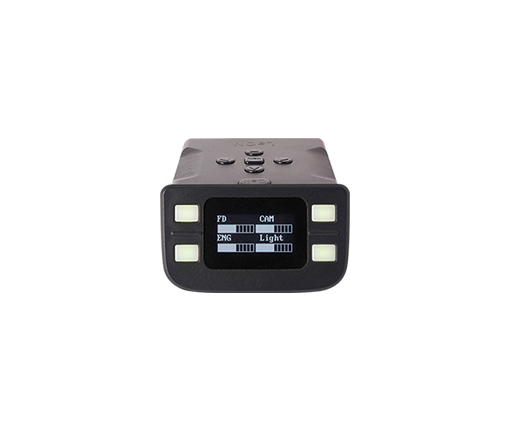

IBP10 Upper

[IBP10 Upper]

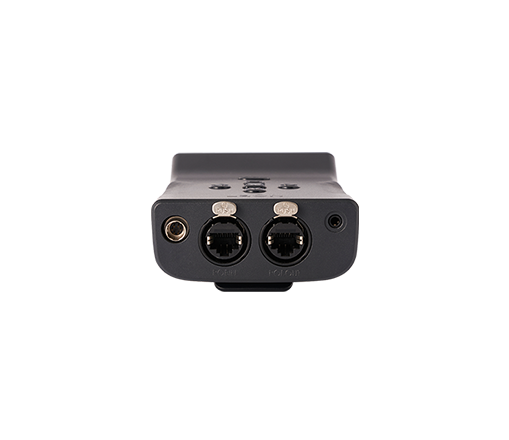

IBP10 Bottom

[IBP10 Bottom]

리소스 다운받기
Specification sheet
Genie group channels Five ~ Ten
Audio Bandwidth 200 Hz to 7.2 kHz
Headset output 500mW into 32 Ohm
Headset Dynamic or Electret, 6-pin mini-DIN male, Receptacle
TRRS headset 3.5Ø, Connect to Earphone or Audio I/O
Line A and Line B (4-Wire) Two RJ-45, 600Ω balanced, level adjustable
Power SupplyPoE In, PoE Out (Daisy-chain) Consumption: 4 watts
Two RJ-45 Connectors, 100Mbps Standard PoE specification
Display OLED
Button 4 Talk keys, Push buttons
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 3.42W x 5.47D x 1.85Hinch (8.75W x 13.9D x 4.7H cm) without Belt Clip
Weight 0.68 lb (310g)
