GENIE IP KEY PANEL

Genie Desk or Wall Panel | GDP4

Product highlights

  • Desk or Wall attached Key Panel
  • 4 Talk channels with 4 Talk keys
  • Built-in loudspeaker and an either Gooseneck microphone or Headset
  • On a Key, 20 Key Panels and Genie group conference channels can be allocated.
  • WAN Link, Line Router and IFB communications in configuration
  • PoE IN x 1
  • Optional desk and wall brackets

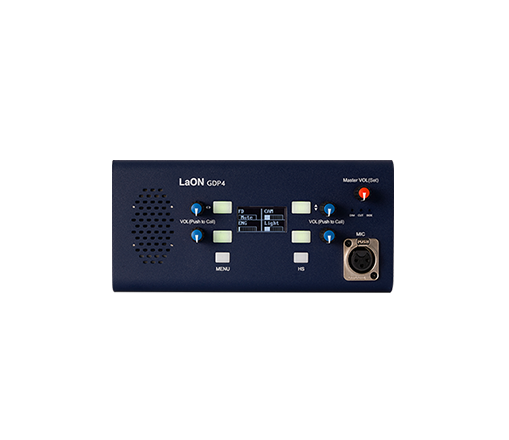

GDP4 Front

[GDP4 Front]

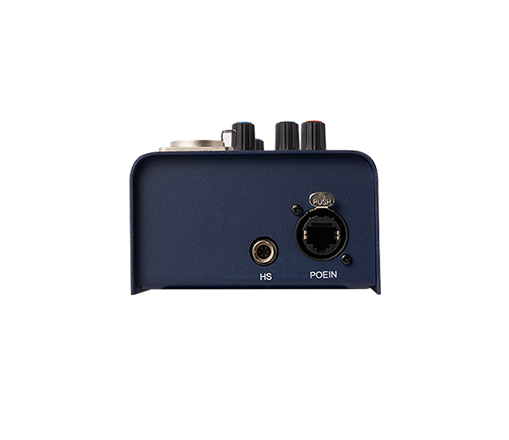

GDP4 Side

[GDP4 Side]

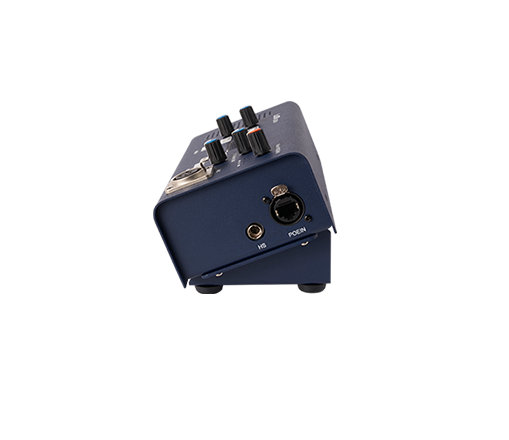

GDP4 with Desk Bracet BRK450

[GDP4 with Desk Bracet BRK450]

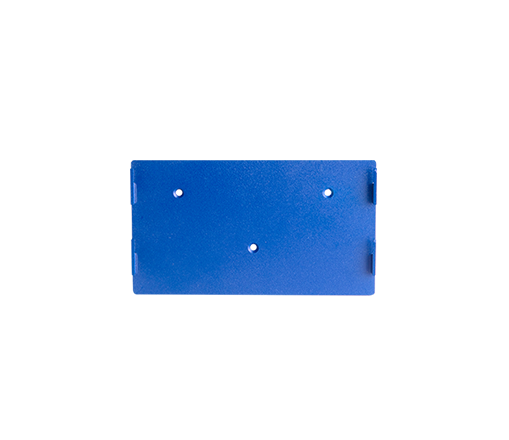

Wall Bracket BRK400

[Wall Bracket BRK400]

리소스 다운받기
Specification sheet
Loudspeaker 3 watts
Headset output 500mW into 32 Ohm
Front Panel Display One OLED screen
Front Panel Button 4 Talk key, LED indicated Buttons and Rotary encoders
Headset Dynamic or Electret, 6-pin mini-DIN male, Receptacle
Gooseneck Microphone Dynamic or Electret, XLR-3F
Power Supply (PoE) Consumption: 5 watts
RJ-45 Connector, 100Mbps Standard PoE specification
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 8.26W x 3.93D x 2.24H inch (21.0W x 10.0D x 5.7H cm)
Weight 2.75 lb (1250g) without Wall Mount Kit (0.44 lb, 200g)

Genie Desk or Wall Panel | GDP16

Product highlights

  • Desk or Wall attached Key Panel
  • 3 TFT color display
  • 4 Channels for 4-Wire
  • 32 Talk channels with 16 Talk keys, 16 Call buttons
  • GPIO (Relay, Opto, AUX D), PoE IN x 1, LAN x 2
  • Built-in loudspeaker and an either Gooseneck mic. or Headset
  • On a Key, 20 Key Panels and Genie group conference channels can be allocated.
  • WAN Link, Line Router and IFB communications in configuration
  • PoE IN and 12V DC dual power

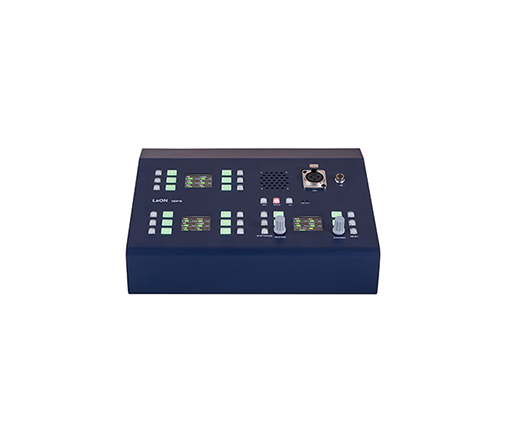

GDP16 Front

[GDP16 Front]

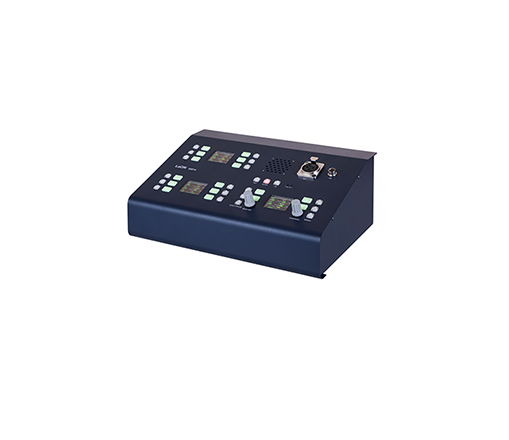

GDP16 Side

[GDP16 Side]

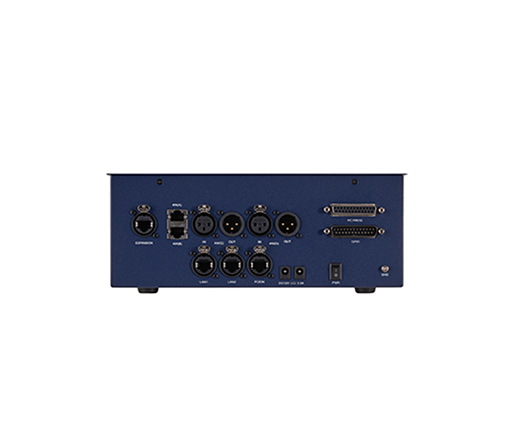

GDP16 Rear

[GDP16 Rear]

리소스 다운받기
Specification sheet
Loudspeaker 3 watts
Headset output 500mW into 32 Ohm
Front Panel Display Three TFT color screens
Front Panel Button 16 Talk key, LED indicated Buttons and Rotary controls
Headset Dynamic or Electret, 6-pin mini-DIN male, Receptacle
Gooseneck Microphone Dynamic or Electret, XLR-3F
Line A and Line B (4-Wire) Two RJ-45, 600Ω balanced, level adjustable
Line C and Line D (4-Wire) Input: XLR-3F, Output: XLR-3M, 600Ω balanced, level adjustable
GPIO, 12VDC, AUX(D) DB25M, 2 Relay outputs and 2 Opto-isolated inputs, 12VDC, 600Ω unbalanced, level adjustable
PC PROG 25-pin D-type female, Updating the Key Panel firmware
PoE Input RJ-45 Connector, 100Mbps Standard PoE specification
LAN Two RJ-45 Connectors, 100Mbps Standard LAN specification
Power Supply Consumption: 10 watts
Two 11.4-12.6VDC inputs, PoE input
The external PSU provides 12VDC 3.335A and at its input takes 100-240VAC, 47-63Hz
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 10W x 6.98D x 3.85H inch (25.4W x 17.7D x 9.8H cm)
Weight 5.07 lb (2300g)
