GENIE CONNECTIVITY DEVICES

Genie WAN Link | GWL

Product highlights

  • Support for Remote Connections of GENIE devices through an internet
  • 6 Full-duplex communication channels per WAN Link
  • 4 Channels for 4-Wire
  • GPIO, PoE IN x 1, LAN x 2
  • PoE IN and 12V DC dual power

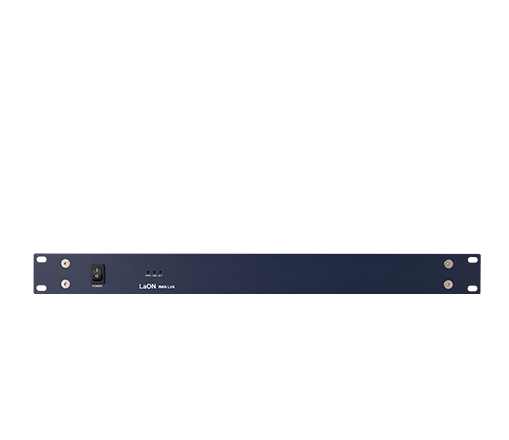

GWL Front

[GWL Front]

GWL Rear

[GWL Rear]

리소스 다운받기
Specification sheet
Line A and Line B (4-Wire) Two RJ-45, 600Ω balanced, level adjustable
Line C and Line D (4-Wire) Input: XLR-3F, Output: XLR-3M, 600Ω balanced, level adjustable
GPIO, 12VDC, AUX (D) DB25M, 12VDC, 600Ω unbalanced, level adjustable
PC PROG 25-pins D-type female, Updating the WAN Link firmware
PoE Input RJ-45 connector, 100Mbps Standard PoE specification
LAN1, LAN2 Two RJ-45 connectors, 100Mbps Standard LAN specification
Power Supply Consumption: 8 watts
Two 11.4-12.6VDC inputs, PoE input
The external PSU provides 12VDC 3.335A and at its input takes 100-240VAC, 47-63Hz
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 16.83W x 8.03D x 1.73H inch (42.75W x 20.4D x 4.4H cm)
Weight 7.05 lb (3200g)
