Boundaryless Intercom communications

LaON, the INTERCOMmunication-maker

LT SERIES WIRELESS INTERCOM

LT750 Expert system

  • Wired-like audio clarity with up to 7.2KHz Audio Frequency Response
  • Less than 23ms low latency
  • Ten(10) RBS75 repeater connections
  • Eleven(11) full duplex audio channels with five(5) group channels
  • Up to 128 Belt Pack connections
  • Belt Pack in Master mode
  • High range professional system that fits at large venue, stadium,broadcast station and OBVan.
리소스 다운받기

System highlights

LaON’s patent-technology base digital wireless intercom system offers the best audio quality with an excellent clarity by using
worldwide license free 5GHz UNII band and frequency interference avoidance technologies. It guarantees the system stability
even in the large congested site environments where various A/V and wireless equipments are co-located while offering the
super-scalability with the exceptional IP based repeater, RBS75. LT750 is high range professional system that offers advanced
and unique features for using at large venues, stadiums, stations, OB trucks and etc.

Operates in license-free 5GHz frequency
where there are less traffics and interferences with many RF channel options.
Super-scalable IP based repeater solution, RS(Remote Station)
can easily support for expanding the coverage and multiple studios or multi-floor spaces can be
consolidated to one communication range. Up to ten(10) RBS75 connections will support you to cover wider area with efficient system volume and the lowest
cost. Prompt automatic or manual hands off is available between coverage.
Industry top level best-in-class audio performance with low latency
23ms low latency level and up to 7.2KHz audio frequency guarantee a high quality audio
performance. LT750 system is perfectly tuned professional wireless intercom system that fits to use in various loud and congested site environments.
Five(5) communication group channel
Single or multiple communication group channels can be assigned to the Base Station, Belt Pack, 4-Wire and AUX devices each and those group channels can
be used in single, multiple or all together at the same time. With this flexible grouping capability, one (1) Base Station covers IFB communication as well as IC
and ISO communications without an additional IFB system which is ‘more with less’ cost efficient solution.
Eleven(11) full-duplex listen & talk communication channel (1 BS + 10 BPs)
Eleven (11) full-duplex audio channels are offered with one (1) Base Station. By making the full use of this with multiple group channels, a number of independent teams are practically able to have IFB and wireless communications in one (1) system respectively.
One hundred and twenty eight(128) Belt Pack connection
One hundred and twenty eight (128) Belt Packs can be registered into a Base Station.
Belt Pack in master mode
A Belt Pack can play a role as a master where there is no Base Station or the Base Station is located far from the actual Belt Pack operation area.
4-Wire and Auxiliary I/O interfaces
4-Wire and Auxiliary Input/Output ports are provided to secure seamless connections with various traditional wired intercom systems, external audio devices
and etc.
Compact design
Comfortable headset and compact Belt Pack with internal antenna support high wearability with mobility even at the tough broadcasting or live event sites.
Various options on battery
Either LaON provided rechargeable battery or AA type Alkaline battery with LaON provided designated battery sled can be used for supplying power to the Belt
Pack. Also, non-LaON provided rechargeable battery can be used with the battery sled.
Monitoring functions
LT750 system provides various monitoring functions for Base Station, Remote Station and Belt Pack such as the frequency being occupied, link status,
RSSI(Received Signal Strength Indication), battery status and microphone gain level and etc.
Industry top level security with AES 256bit level 3 encryption
AES 256bit Level 3, the top level encryption technology is applied to secure confidential communications.
Efficient 7 ports or 8 ports charger
With 7 ports charger, there are five (5) bays for charging the Belt Pack batteries which are equipped in the Belt Packs and two (2) bays for charging the Belt Pack batteries which are separated from the Belt Packs. Two (2) of them are for dual use for charging Mobile Station’s batteries.

BS750 Base Station

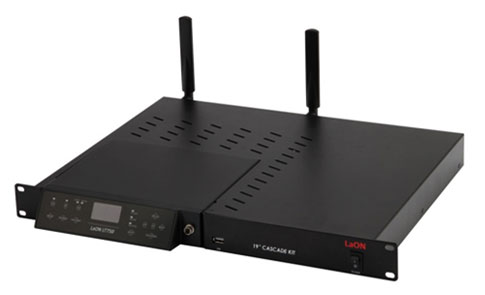

Base Station BS750 which is built in 19” cascade kit_Front
[Base Station BS750 which is built in 19” cascade kit_Front]

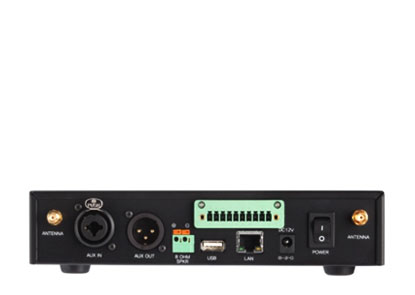

Rear panel of the Base Station BS750 without 19” cascade kit
[Rear panel of the Base Station BS750 without 19” cascade kit]
  • LT750 Expert system Base Station
  • Desk Station type
  • 19” Cascade kit can be assembled
  • Operates in 5GHz UNII band with an automatic RF scan
  • Up to ten(10) RBS75 repeater connections
  • Offer 4Wire(x1) and AUX I/O(x1) interfaces
  • 128 Belt Pack connections
  • Eleven(11) full-duplex audio communication channel
  • Five(5) group communication channel
  • RF frequency monitoring on OLED screen
Specification sheet
RF Frequency: UNII band: 5.16GHz~5.34GHz, 5.48GHz~5.70GHz, 5.745GHz~5.865GHz
Antenna Connector Type: External 1/2 -wave dipole, SMA connector

Transmitter

Type: Frequency/Time Diversity
Transmit Power: 17dBm(50mW) @antenna port
Modulation Type: QPSK
Frequency Stability: ± 2ppm

Receiver

Type: Antenna/Frequency/Time Diversity
RF Sensitivity: -85dBm for 5 BER
Frequency Stability: ± 2ppm
Belt Packs per Base station: Belt Packs per Base station: Inherently, 128 Belt Packs can be paired up, and ten (10) Belt Packs operating in full-duplex (talk/listen) at the same time while eleven (5) full-duplex channel is provided including the Master Belt Pack. Single communication group channel is assigned to the Master Belt Pack.
Audio Communication Group: Five (5)
Audio Frequency Response: 200 Hz to 7.2 kHz
Audio Dynamic Range: >70dB
S/N >95dB @ 1Khz
Headset output: 250mW into 32 Ohm
Microphone Type: Dynamic or Electret
Headset Connector: 6-pin mini-DIN male
Latency: One-way system latency less than 23ms direct
Communication Security: 256 bits key AES level 3 Encryption
Auxiliary Input: XLR-3F/1/4”(6:35mm) combo jack, 600Ω balanced, level adjustable
Auxiliary output: XLR-3M, 600Ω balanced, level adjustable
8Ω Speaker Output: 1W into 8Ω
4-Wire I/O: 10-Pin Spring Clamp connector, 600Ω balanced, level adjustable
LAN RJ-45 Connector: One (CAT-5 standard wiring) , Up to ten (10) Remote Station can be connected via LAN.
USB Connector : Monitoring and Program port
Front Panel Display: OLED 128 x 64 Resolutions
Front Panel Button: Touch buttons
Power Input: 100-240VAC, 47-63Hz, 11.4-12.6VDC
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Dimensions: 8.26W x 6.37L x 1.73H inch (21W x 16.2L x 4.4H cm) without connector on the rear panel and foot.
Weight: 2.4118 lbs (1094g)

19” Cascade kit

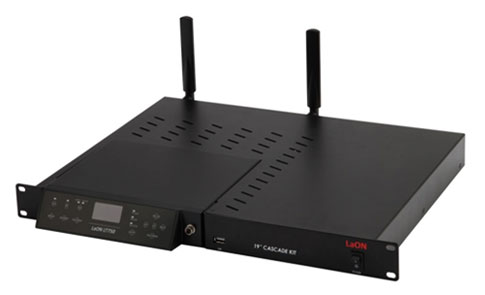

19” Cascade kit ‘BSCCK100’ after assembled with the Base Station_Front
[19” Cascade kit ‘BSCCK100’ after assembled with the Base Station_Front]

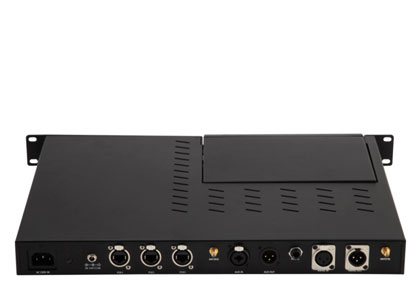

19” Cascade kit ‘BSCCK100’ after assembled with the Base Station_Rear
[19” Cascade kit ‘BSCCK100’ after assembled with the Base Station_Rear]

The Base Station, BS750 and BS550 can be docked to the 19” cascade kit. Locking power connector, 3 Pin XLR connector for
4-Wire ports and AUX I/O ports, ‘Push-Pull Locking’ type EtherCON connectors for three(3) PoE Ports are provided on the rear
panel of the cascade kit.

  • BS750/BS550 installation kit that fits for 19” rack
  • One(1) PoE Hub inclusive (AC100-240V power in)
  • Neutrik connector for LAN RJ-45 Connector (x 3)
  • Neutrik connector for 4-Wire connector (female & male)
  • Neutrik Auxiliary In/Out connectors
  • Power toggle switch on the front panel
  • Phone jack for 8Ω Speaker output (1W into 8Ω)
  • Antenna connector (TX, RX) on the rear and front panel: external 1/2 -wave dipole, SMA connector
  • Power: 100-240VAC, 47-63Hz, 11.4-12.6VDC
  • DC power input jack: Switchcraft 722RA
  • DC power plug: Switchcraft S760 2.1mm x 5.5mm
  • Dimensions: 482mmx321.2mmx44mm
  • Weight: 4754g with PoE Hub and without Base Station

BP750 Belt Pack

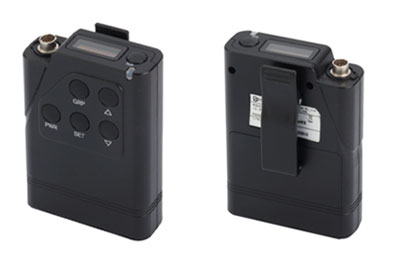

Belt Pack BP750_Front & Rear
[Belt Pack BP750_Front & Rear]
Battery sled
[Battery sled]
  • LT750 Expert system Belt Pack
  • Belt Pack in master mode
  • Key lock
  • Five(5) group communication channel
  • Two(2) group channels communication (ISO) of five(5) group channels
  • Hands-off sensibility level adjustment
  • Low cut level adjustment
  • Either rechargeable battery or AA type alkaline batteries (x2) with a designated battery sled can be used
  • Compact and light pack
Specification sheet
RF Frequency: UNII band: 5.16GHz~5.34GHz, 5.48GHz~5.70GHz, 5.745GHz~5.865GHz
Antenna Connector Type: Internal

Transmitter

Type: Antenna/Frequency/Time Diversity
Transmit Power: 17dBm(50mW) @antenna port
Modulation Type: QPSK
Frequency Stability: ± 2ppm

Receiver

Type: Antenna/Frequency/Time Diversity
RF Sensitivity: -85dBm for 5 BER
Frequency Stability: ± 2ppm
Belt Packs per Base station: Inherently, 128 Belt Packs can be paired up, and ten (10) Belt Packs operating in full-duplex (talk/listen) at the same time while eleven (5) full-duplex channel is provided including the Master Belt Pack. Single communication group channel is assigned to the Master Belt Pack.
Audio Communication Group: Five (5)
Audio Frequency Response : 200 Hz to 7.2 kHz
Audio Dynamic Range: >70dB
S/N >95dB @ 1Khz
Headset output: 400mW into 32 Ohm
Microphone Type: Dynamic or Electret
Headset Connector: 6-pin mini-DIN male
Latency: One-way system latency less than 23ms direct
Communication Security: 256 bits key AES level 3 Encryption
Display: OLED 128 x 32 Resolutions
Button: Push buttons
Battery Requirement: 2.4V 2450mAh Rechargeable NiMH Battery or Two AA size 1.5V alkaline batteries
Rechargeable Battery life: Nine (9) hours in full duplex mode
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Dimensions: 2.89W x 0.92L x 3.83H inch (7.35W x 2.35L x 9.73H cm) without belt clip
Weight: 0.445 lbs (202g) with battery / 0.29 lbs (133g) without battery

RBS75 Remote Station

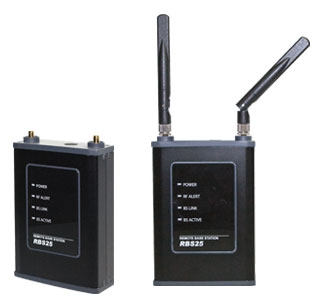

Remote Station ‘RBS75’ of LT750 system
[Remote Station ‘RBS75’ of LT750 system]
Bottom of RBS85
[bottom]
  • IP based PoE enabled repeater
  • Operates in 5GHz UNII band
  • Standard LAN network configuration
  • CAT-5e STP cable to be used
  • Multiple studio spaces or multi-floors can be consolidated in a wireless coverage through easy wiring
  • Up to ten(10) RBS75 can be connected per Base Station BS750
  • Prompt automatic hands-off between stations is available as well as manual hands-off
  • Up to one hundred twenty eight (128) Belt Pack link
  • Provides the same coverage with Base Station
  • Shares the full-duplex and group communication channels with the Base Station
Specification sheet
RF Frequency: UNII band: 5.16GHz~5.34GHz, 5.48GHz~5.70GHz, 5.745GHz~5.865GHz
Antenna Connector Type: External 1/2 -wave dipole, SMA connector

Transmitter

Type: Frequency/Time Diversity
Transmit Power: 17dBm(50mW) @antenna port
Modulation Type: QPSK
Frequency Stability: ± 2ppm

Receiver

Type: Antenna/Frequency/Time Diversity
RF Sensitivity: -85dBm for 5 BER
Frequency Stability: ± 2ppm
LAN RJ-45 Connector: One, Connect to the Base Station via LAN.
Power Input: PoE from the Network Switch
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Dimensions: 3.46W x 1.47L x 4.80H inch (8.8W x 3.74L x 12.2H cm) without RBS holder kit
Weight: 0.831 lbs (377g) without RBS holder kit
