Boundaryless Intercom communications

LaON, the INTERCOMmunication-maker

GENIE CONNECTIVITY DEVICES

Genie Audio Interface | GAIF

Product highlights

  • Dante/AES67/USB audio-over-Ethernet
  • 4 x audio channels for Dante/AES67 of which 2 x channels can be used for USB connection
  • 2 x USB ports
  • 2 x External LAN, 1 x PoE In, 2 x LAN
  • 12V DC dual power
  • GAIF in master mode for Genie wired intercom configuration without a Base Station

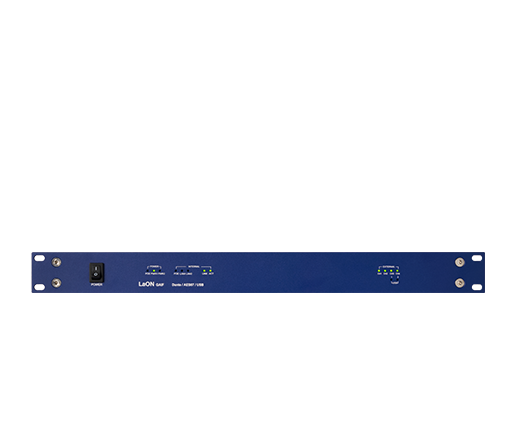

GAIF Front

[GAIF Front]

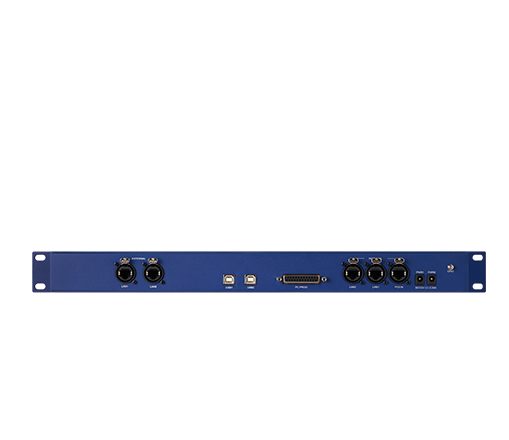

GAIF Rear

[GAIF Rear]

리소스 다운받기
Specification sheet
Dante audio channels 4 inputs and outputs
Audio format & Sampling rate 24bit / 44.1, 48, 88.2, 96kHz
USB connection Type B, USB 2.0
PC PROG 25-pins D-type female, Updating the Audio Interface firmware
PoE Input RJ-45 Connector, 100Mbps Standard PoE specification
LAN Two RJ-45 Connectors, 100Mbps Standard LAN specification
Power Supply Consumption: 6.0 wattsTwo 11.4-12.6VDC inputs, PoE inputThe external PSU provides the 12VDC 3.3A and at its input takes 100-240VAC, 47-63Hz
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 16.83W x 8.03D x 1.73H inch (42.75W x 20.4D x 4,4H cm)
Weight 7.05 lb (3200g)
